Generate Schematic PDF

PDF export button  is located on the schematic toolbar.

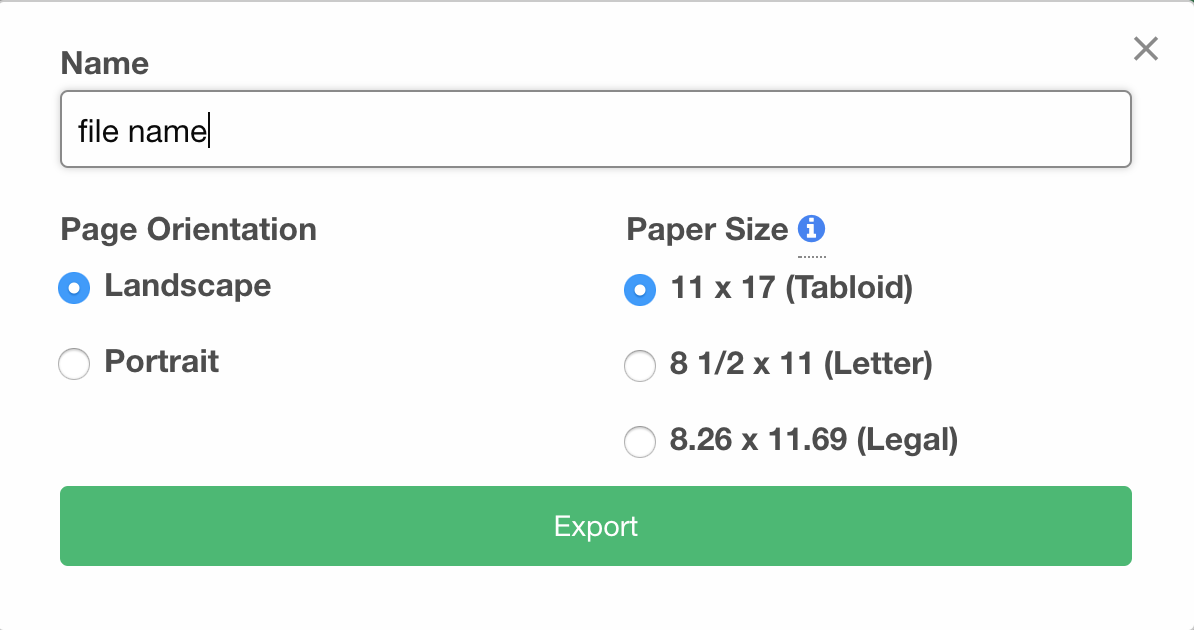

Enter a file name (defaults to the schematic name), select the orientation and paper size then click the green Export button.

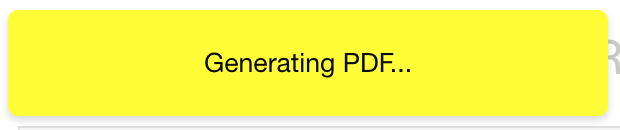

MBO will generate the schematic and after a few seconds

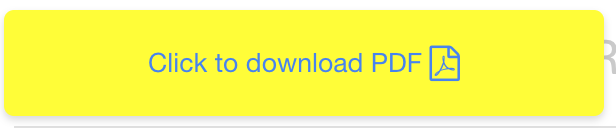

your download link will be available.
